Peptide Mass-Spectrometry Charge States Explained

TLDR

A mass spectrometer reports mass-to-charge ratio, or m/z, rather than directly weighing a neutral peptide. Electrospray ionization can give the same peptide one, two, three, or more charges, producing several peaks at different m/z values. Charge can often be assigned from isotope spacing: approximately 1.00 Th indicates 1+, 0.50 Th indicates 2+, and 0.33 Th indicates 3+. A charge-state envelope collects the signals from multiple charge states of one analyte, while deconvolution converts those signals into an estimated neutral mass. Isotope spacing within a cluster and spacing between charge states are different measurements and should not be confused.

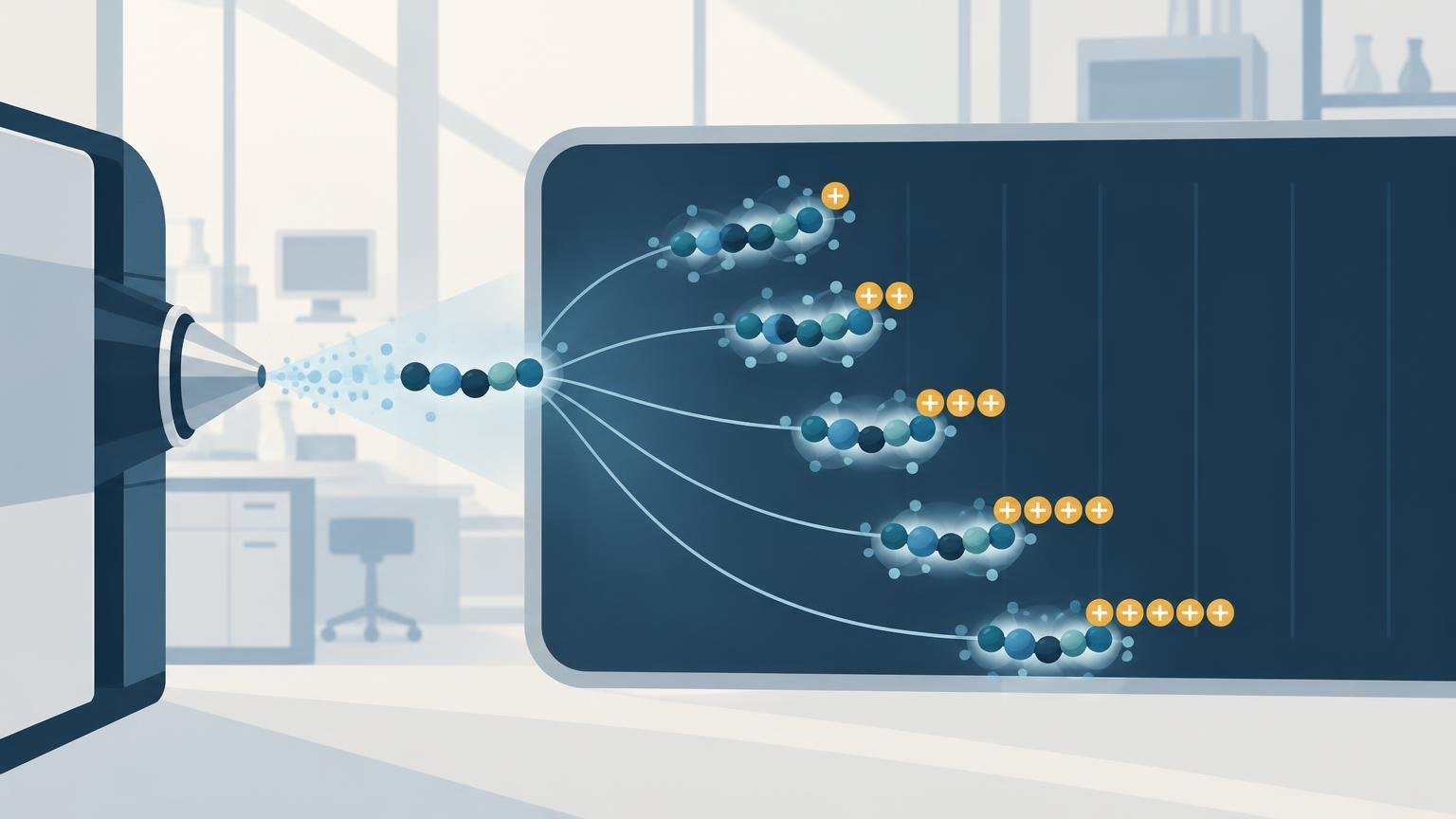

Why one peptide can produce several m/z signals

The central concept is that mass spectrometry measures ions, not neutral molecules. More specifically, it measures an ion’s mass-to-charge ratio. In positive-mode electrospray ionization, or ESI, a peptide may acquire several protons and appear as a family of positively charged ions. The same neutral peptide can therefore generate [M+H]+, [M+2H]2+, [M+3H]3+, and higher charge states. The principles of electrospray ionization explain why multiply charged peptide and protein ions are a routine feature of ESI spectra.

For a protonated ion, the relationship is m/z = (M + z·mH)/z, where M is neutral peptide mass, z is charge, and mH is the proton mass. Rearranging gives M = z(m/z − mH). The important consequence is that adding charge moves a peptide to lower m/z, even though its underlying neutral mass has not changed.

Ion	Charge	Approximate m/z for a 1200-Da neutral peptide
[M+H]+	1+	1201.007
[M+2H]2+	2+	601.007
[M+3H]3+	3+	401.007

These are not three peptides with neutral masses near 1201, 601, and 401 Da. They are three ionic forms of one 1200-Da analyte. Multiple charging is particularly useful because it places larger peptides and proteins within accessible m/z ranges.

Isotope spacing is the clearest charge-state clue

Each charge state can contain its own isotopic cluster. Naturally occurring heavy isotopes produce peaks separated by approximately 1.00335 Da in neutral-mass terms. Division by charge compresses that difference on the m/z axis, so adjacent isotopic peaks are separated by approximately 1.00335/z Th.

Assigned charge	Expected adjacent isotope spacing
1+	Approximately 1.003 Th
2+	Approximately 0.502 Th
3+	Approximately 0.334 Th
4+	Approximately 0.251 Th

Thus, a resolved cluster with roughly 0.50-Th spacing is consistent with a 2+ ion, while spacing near 0.33 Th supports a 3+ assignment. This inverse relationship is more informative than simply looking at where the peak appears on the m/z axis. The Analytical Chemistry discussion of ESI-MS interpretation also emphasizes the value of considering isotope patterns, adducts, and accurate mass together.

What a charge-state envelope shows

A charge-state envelope is the set of signals produced when one analyte is observed at several charge states. Its charge-state distribution describes the relative intensities of those ions. For example, an envelope might contain 2+, 3+, and 4+ ions, with 3+ giving the strongest signal. That pattern does not by itself indicate three neutral molecular masses.

The distribution is not a fixed molecular fingerprint determined only by the number of lysine, arginine, histidine, or terminal ionizable groups. Sequence and composition matter, but solvent composition, counterions, desolvation, gas-phase behavior, and instrument settings can alter which charge states are detected and their relative abundance. A beta-endorphin LC–ESI-MS study, for example, found that solvent selection and changes in declustering and focusing potentials affected the observed distribution. The beta-endorphin charge-state study illustrates why acquisition conditions must be considered before interpreting an envelope mechanistically.

Do not confuse two kinds of peak spacing

Isotope spacing is measured between adjacent peaks inside one isotopic cluster. It follows the approximately 1.00335/z relationship and can therefore reveal charge directly when the isotope structure is resolved.

Spacing between the centers of neighboring charge states is different. Adjacent [M+zH]z+ and [M+(z+1)H](z+1)+ ions are separated by approximately M/[z(z+1)] on the m/z axis. This interval is not constant: higher charge states occur at lower m/z and generally crowd closer together. Treating the distances between envelope peaks as though they were isotope spacing is a common route to incorrect charge assignments.

From an envelope to neutral mass

Once charge is assigned, each charge-state peak can be converted into neutral mass with M = z(m/z − mH). Deconvolution applies this logic across an envelope and represents the data in neutral-mass space. Signals from several charge states should converge on the same neutral mass if they belong to the same analyte and have been assigned correctly.

Agreement across charge states strengthens an interpretation, but it is not infallible. Overlapping analytes, unresolved isotope clusters, missing intermediate charge states, and adducts can confuse automated or manual deconvolution. Sodium, potassium, ammonium, and other associated species shift observed m/z values because the ion is no longer a simple protonated form. Negative-mode ESI adds another possibility: multiply deprotonated ions written as [M−zH]z−.

A defensible assignment therefore considers charge, isotope pattern, adduct chemistry, mass accuracy, and consistency across multiple charge states. The broader LC-MS peptide identity-confirmation workflow explains how these observations can be combined with retention behavior and orthogonal evidence.

What charge states establish—and what they do not

Correct charge assignment helps translate an ESI spectrum into evidence that an observed molecular mass is consistent with the expected peptide. It also helps distinguish a genuine multi-charge envelope from unrelated peaks. A single signal at an expected m/z is weaker evidence when its charge, isotope pattern, and possible adduct assignment remain unresolved.

Mass consistency is still not complete identity proof, and it is not a purity measurement. Isobaric compounds, sequence variants with the same nominal mass, coeluting impurities, and some modifications may require chromatographic separation, tandem MS, or other orthogonal methods. Likewise, an intact-mass result does not establish peptide content, biological activity, sterility, or endotoxin status. This distinction is central to understanding why peptide identity and purity are not the same analytical claim.

A practical interpretation sequence

Identify resolved isotopic clusters rather than treating every visible peak as an independent analyte.
Estimate charge from adjacent isotope spacing using the approximately 1.00335/z relationship.
Calculate neutral mass from each credible charge state and check whether the results converge.
Evaluate sodium, potassium, ammonium, counterion-related, or other plausible adducts before rejecting a mass match.
Inspect the entire charge-state envelope and acquisition conditions, not only its most intense peak.
Use retention behavior, tandem MS, or another orthogonal method when intact mass leaves meaningful ambiguity.

The strongest conclusion should match the measurement. A coherent envelope with supported charge assignments can provide strong evidence for an intact molecular mass. It does not, by itself, answer every question about peptide identity, purity, quantity, or function.

Frequently asked questions

Why do larger charge states appear at lower m/z?

The peptide’s ion mass is divided by a larger charge number. A triply protonated peptide therefore appears at roughly one-third of its neutral mass plus the proton contribution, while a doubly protonated form appears at roughly one-half.

Does the strongest peak represent the peptide’s molecular weight?

Not directly. It represents the m/z of one ionic form. Its charge and adduct composition must be assigned before neutral mass can be calculated.

Can charge be determined when isotopes are unresolved?

Sometimes. Neighboring charge states that belong to the same analyte can be evaluated mathematically, and deconvolution software may infer a consistent neutral mass. Confidence is lower when envelopes overlap, charge states are skipped, or adducts are present, so orthogonal evidence becomes more important.

Does a broad charge-state envelope mean the peptide is impure?

No. One peptide can naturally produce several charge states during ESI. Purity is a separate analytical question. Unexpected peaks may warrant investigation, but the presence of multiple charge states is not itself evidence of multiple neutral compounds.
